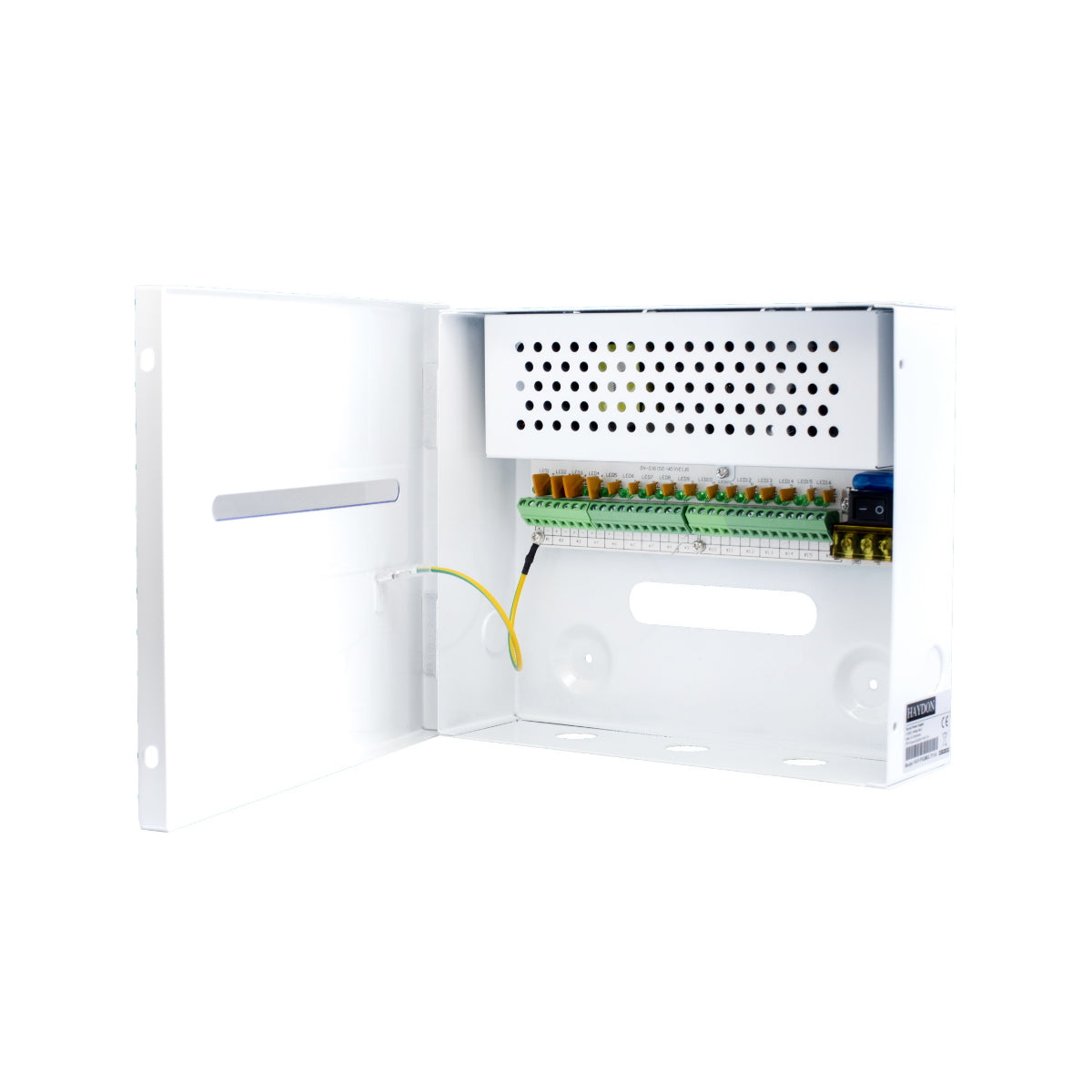

HAY-PSUMULTI-10A Haydon 16 Way 10A Metal Boxed Power Supply 12Vdc

HAY-PSUMULTI-10A Haydon metal boxed 12VDC 10A power supply for CCTV cameras supports up to 16 outputs with a maximum total power output of 10 Amps. The professional power supply provides a high quality low noise regulated DC power supply with PTC fuse over current protection. PTC fuses do not need to be replaced in event of a short circuit or overload condition and will automatically reset once the fault is rectified.

Outputs 1 to 4 are rated up to 1.6A each

Outputs 5 to 16 are rated up to 1.1A each

TOTAL POWER MAX = 10Amps


· 12VDC 10A Boxed Power Supply
· 16x Outputs
· Auto Reset PTC fuse for each output
· Regulated and filtered
· Condition LED on each output
· Surge Protection
· Internal Power on/ off switch
· RoHS and CE compliant
· White powder coated 1.2mm steel
· Dimensions 240 x 205 x 65mm
· Operating -10 to 50°C / 0-90%rH

Datasheet Download

BRAND: Haydon
